【RPI022】樹莓派 Raspberry Pi 3 Model B+ 最新V1.4版 3B+

【RPI022】樹莓派 Raspberry Pi 3 Model B+ 最新V1.4版 3B+

NCC認證: CCAO18LP0240T9
商品編號
RPI022
售價
1,730
優惠價
1,695
數量
庫存:183
最新版樹莓派Raspberry Pi 3 Model B+ V1.4

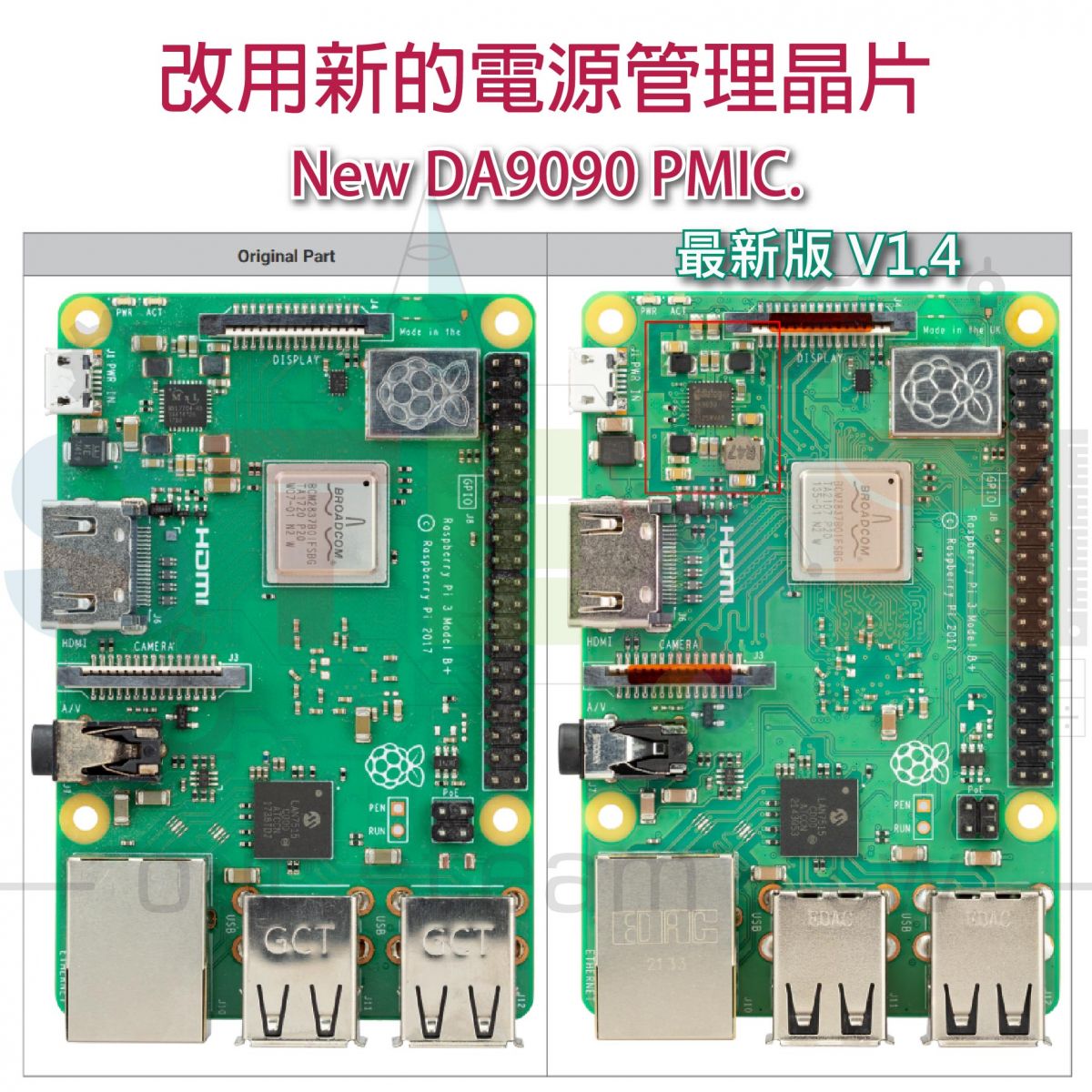

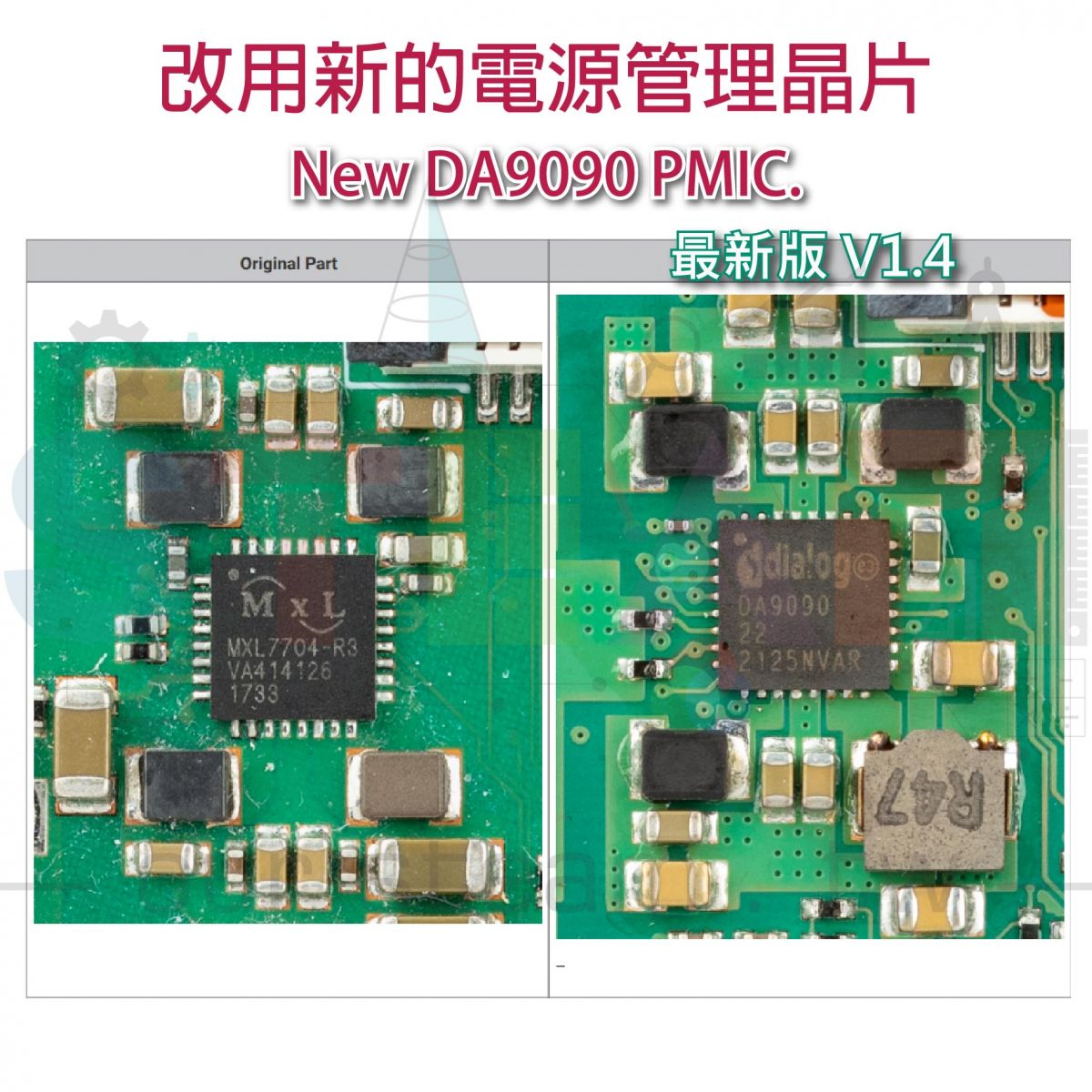

改用新的電源管理晶片New DA9090 PMIC.



變更說明

Old PCB revision: R5
Old software model number: 1.3
New PCB revision: R9
New software model number: 1.4


新版本辨識方式

1. 外觀

2. cat /proc/cpuinfo will report "Model" as "Raspberry Pi 3 Model B+ Rev 1.4"



【產品優勢】

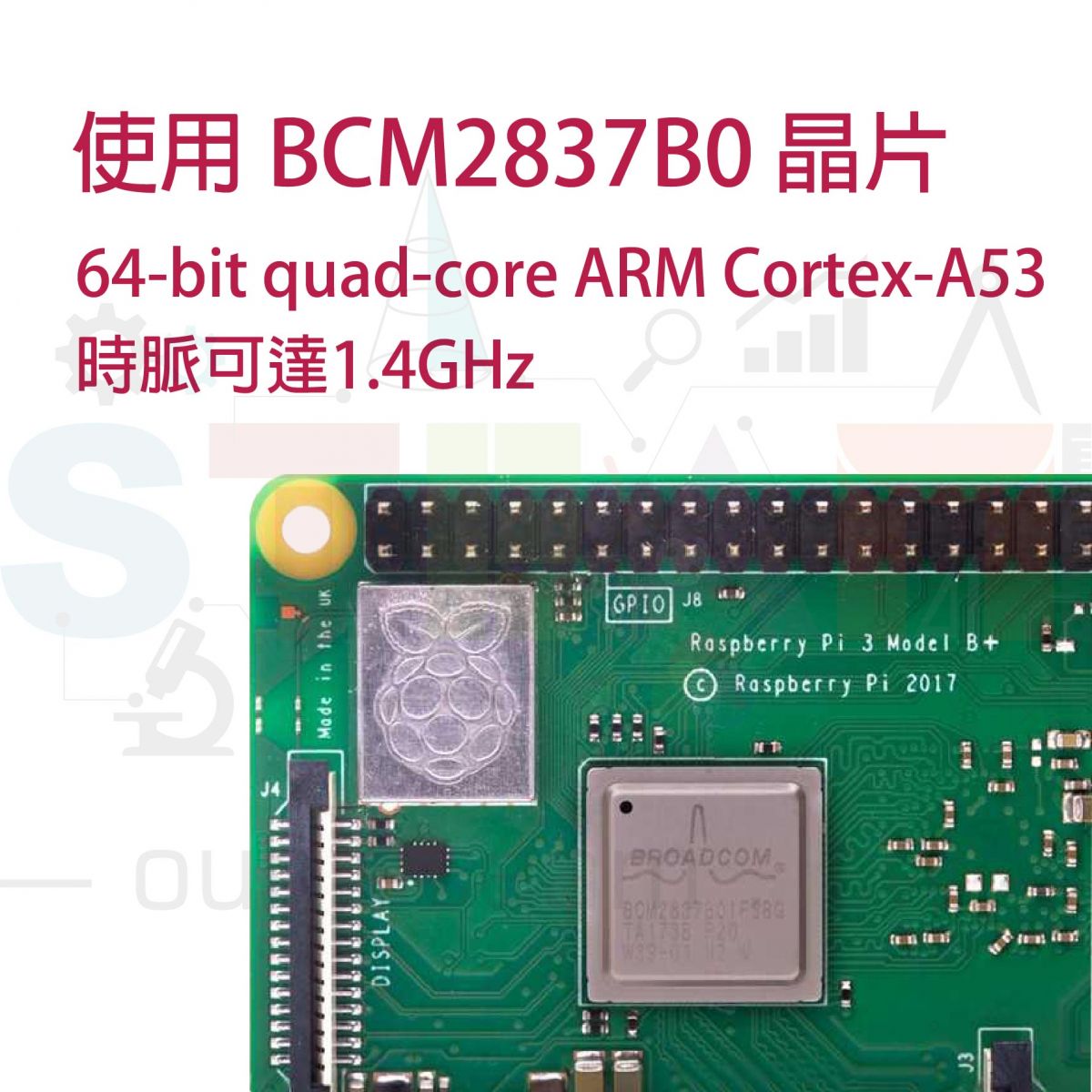

CPU使用 BCM2837B0 晶片64-bit quad-core ARM Cortex-A53,時脈可達1.4GHz

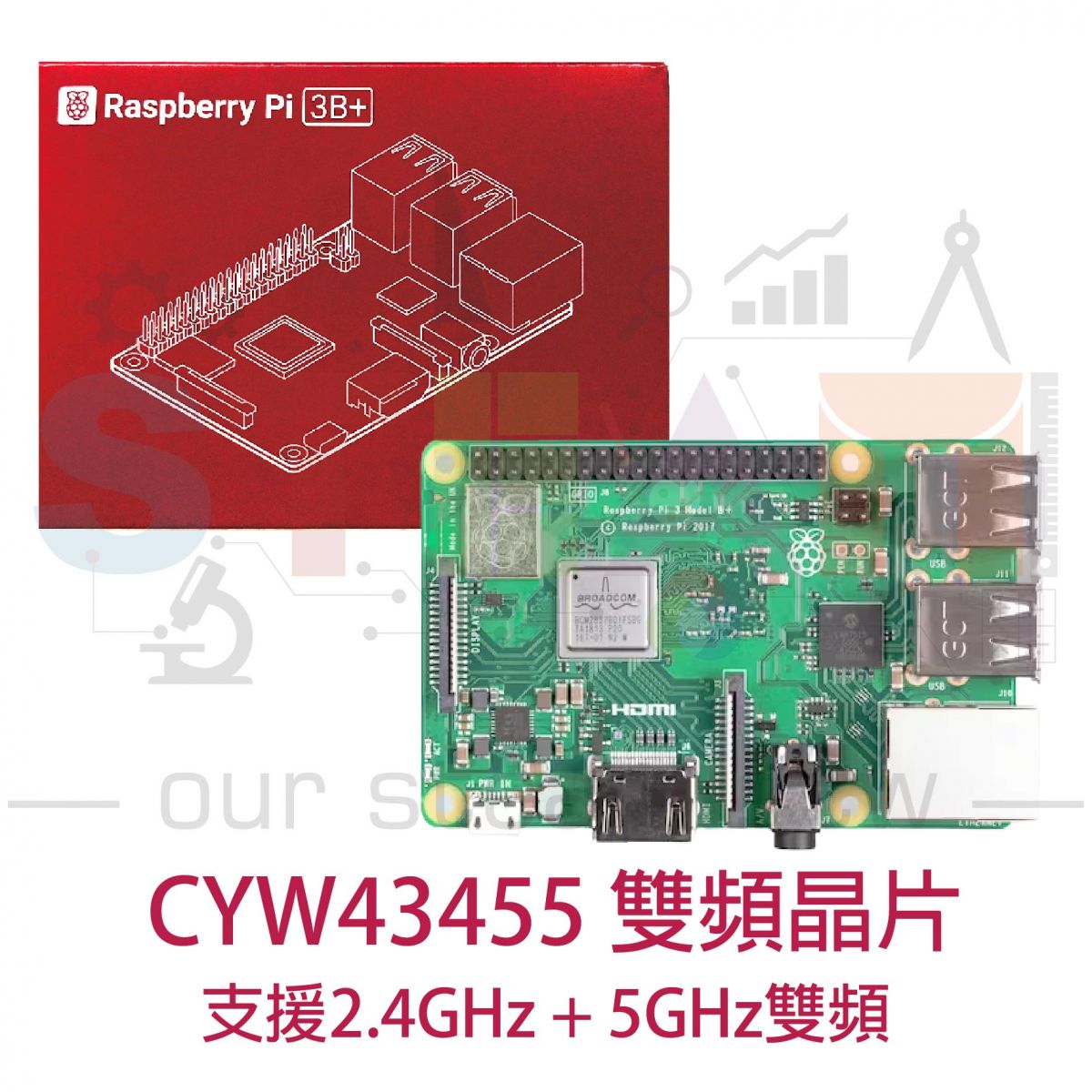

Cypress CYW43455 雙頻晶片,無線網路卡同時支援2.4GHz + 5GHz雙頻
支援藍芽Bluetooth 4.2版本

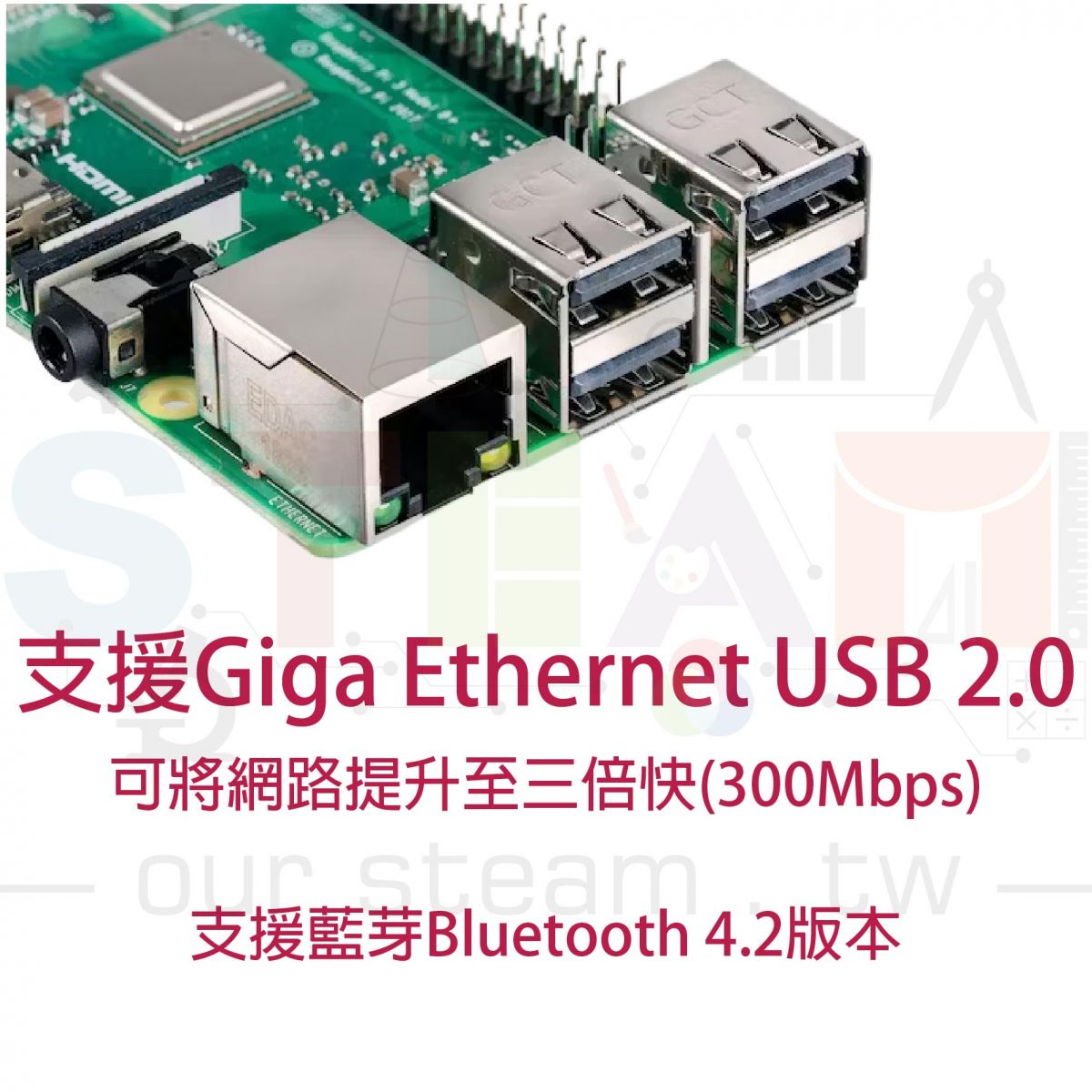

Microchip LAN7515,支援Giga Ethernet USB 2.0,可將網路提升至三倍快(300Mbps)
支援乙太網路供電(Power-over-Ethernet),由四根新增的Pin做控制,需另外搭配官方PoE擴充板

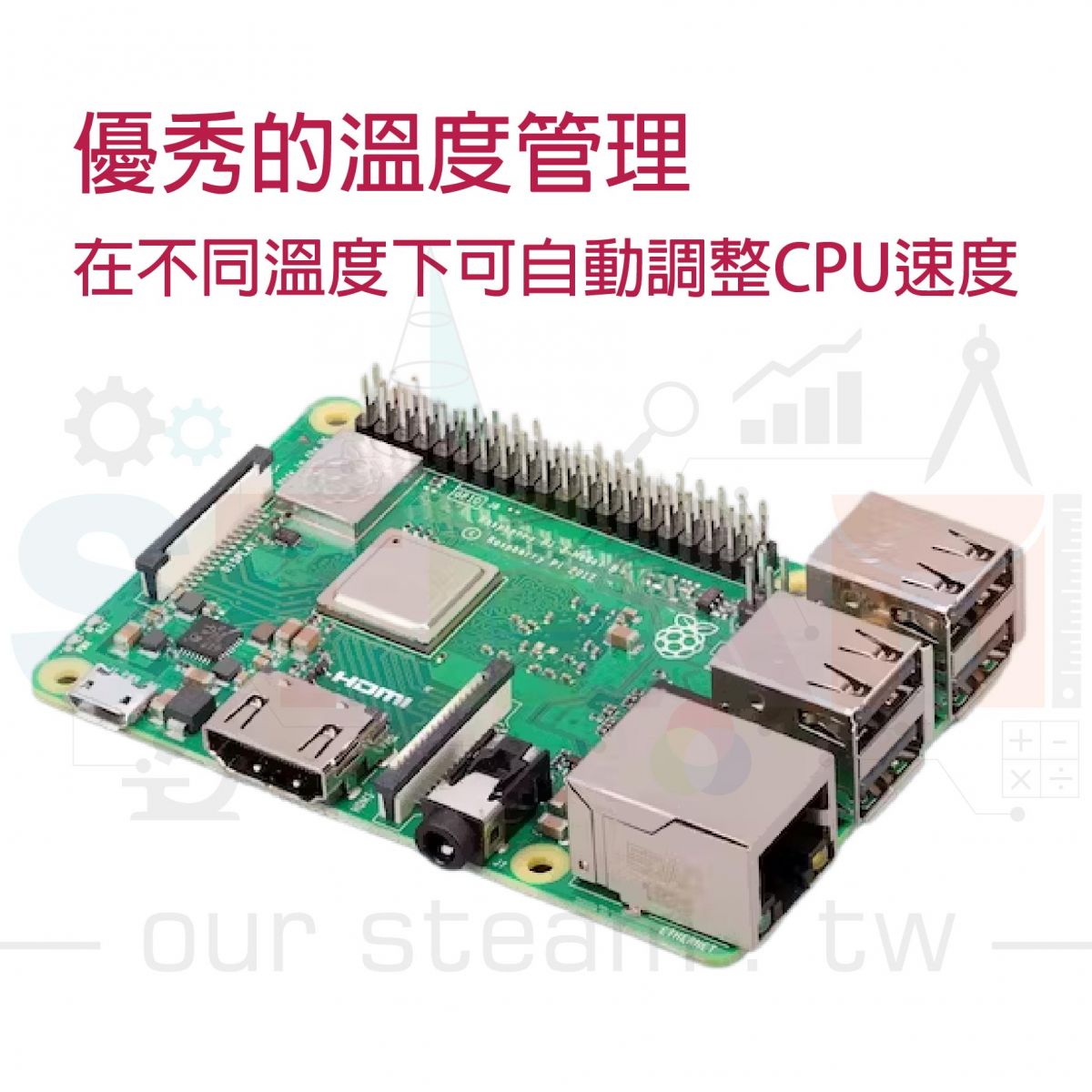

更優秀的溫度管理,在不同溫度下可自動調整CPU速度




【產品規格】
處理器

Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
GPUDual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0; hardware-accelerated OpenVG; and 1080p30 H.264 high-profile decode
記憶體1GB LPDDR2 SDRAM
視訊輸出Composite RCA; HDMI
音訊輸出3.5 mm jack; HDMI(1.3 & 1.4)
AccessExtended 40-pin GPIO header
microSD端口儲存數據及加載操作系統
USB4USB 2.0連接埠
EthernetGigabit Ethernet over USB 2.0 (最大網速300Mbps)
無線網路2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN
BluetoothBluetooth 4.2; 低功耗藍芽Bluetooth Low Energy(BLE)
GPIO40-pin 2.54 mm (100 mil) expansion header: 2×20 strip
CSI攝影機端口用於連接Raspberry Pi 相機
DSI顯示器端口用於連接Raspberry Pi 觸控螢幕
音效4 pole stereo output and composite video port
輸入電源5V / 2.5A 直流電源 input
尺寸85mm x 56mm x 17mm
重量50g
